Universal lathes, there are machines to machining workpieces with circular shapes. These lathes have many components that work together to allow machining. Apart from best-known components such as: headstock, bed or carriage distinguish other also important.
The main components of the universal lathe are:
- Bed (This is metal body – base with slides for tailstock and carriage)
- Carriage (Moves on guides of the bed. It has a cross-slide and ToolPost)
- Headstock (Located on the body, provides the rotation of the workpiece)
- Tailstock (Moves on bed guides. It is used to support long workpieces. It has Pinole, where you can install the tool. For example, you can mount the center and then used to support long workpieces. Alternatively, you can mount the drill and then drill holes coaxial).
- Steady rest (This is a steady support for long workpieces. Limits the downward bending of the long workpiece and bending in a direction opposite to the turning tool, which presses the workpiece during cutting. Steady attached to the lathe bed and during turning is all the time in one place).
- Follower rest (This is a steady support for long workpieces such as axles, shafts, screws. Limits the downward bending of the long workpiece and bending in a direction opposite to the turning tool, which presses the workpiece during cutting. As opposed to steady rest, follower rest is attached to the carriage and during cutting moves together with the carriage and turning knife)
- Tool post (In universal lathes, usually mounted is a 4-way tool post – for four turning knife).
- 3-jaw chuck (It is a self-centering chuck to hold the workpiece with circular shapes)
- 4-jaw chuck (It is a chuck, in which each jaw is controlled independently. Used to hold the workpiece of the non-rotating shapes)
- Centers (It is a tool to support long workpieces)

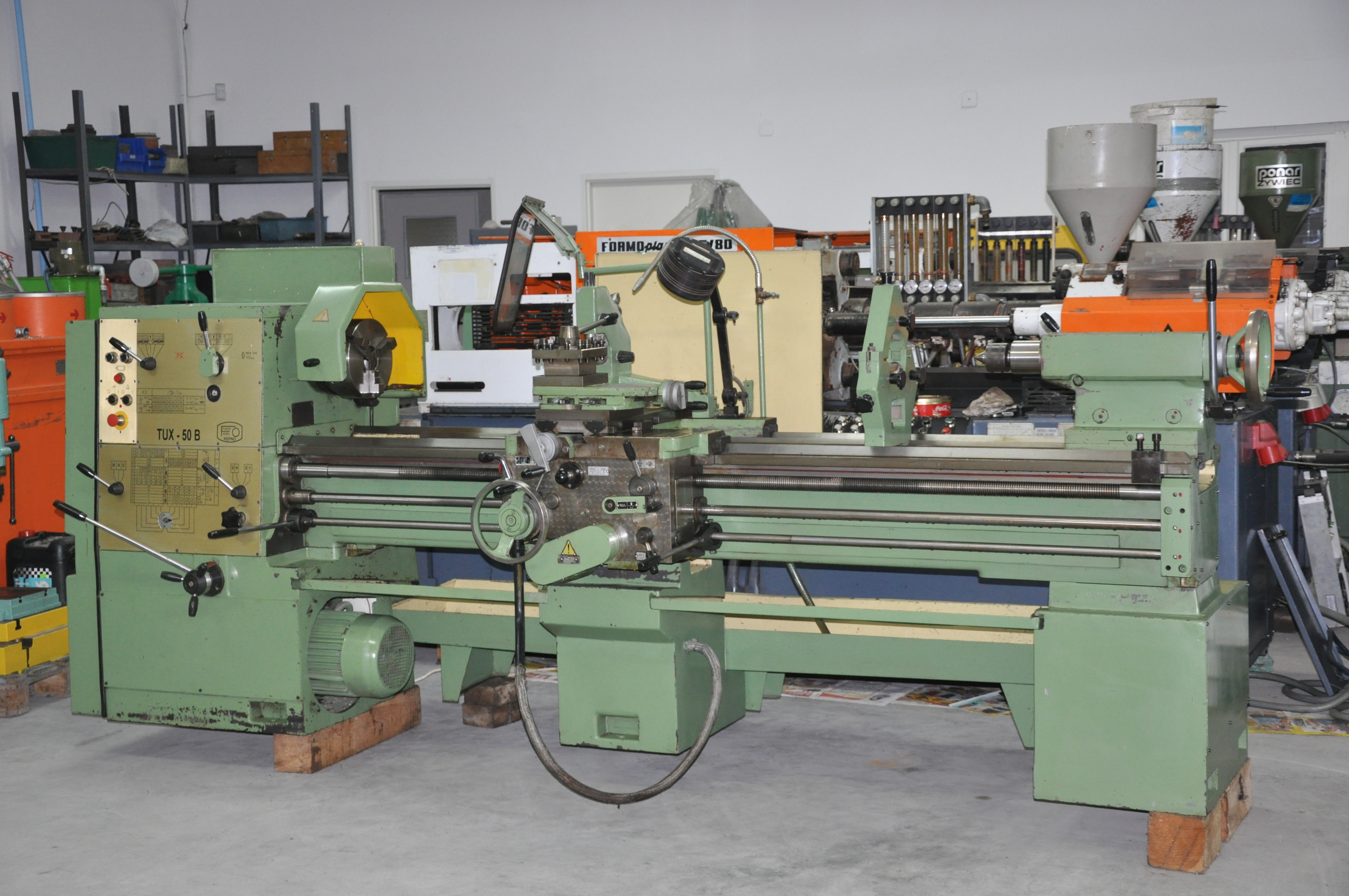

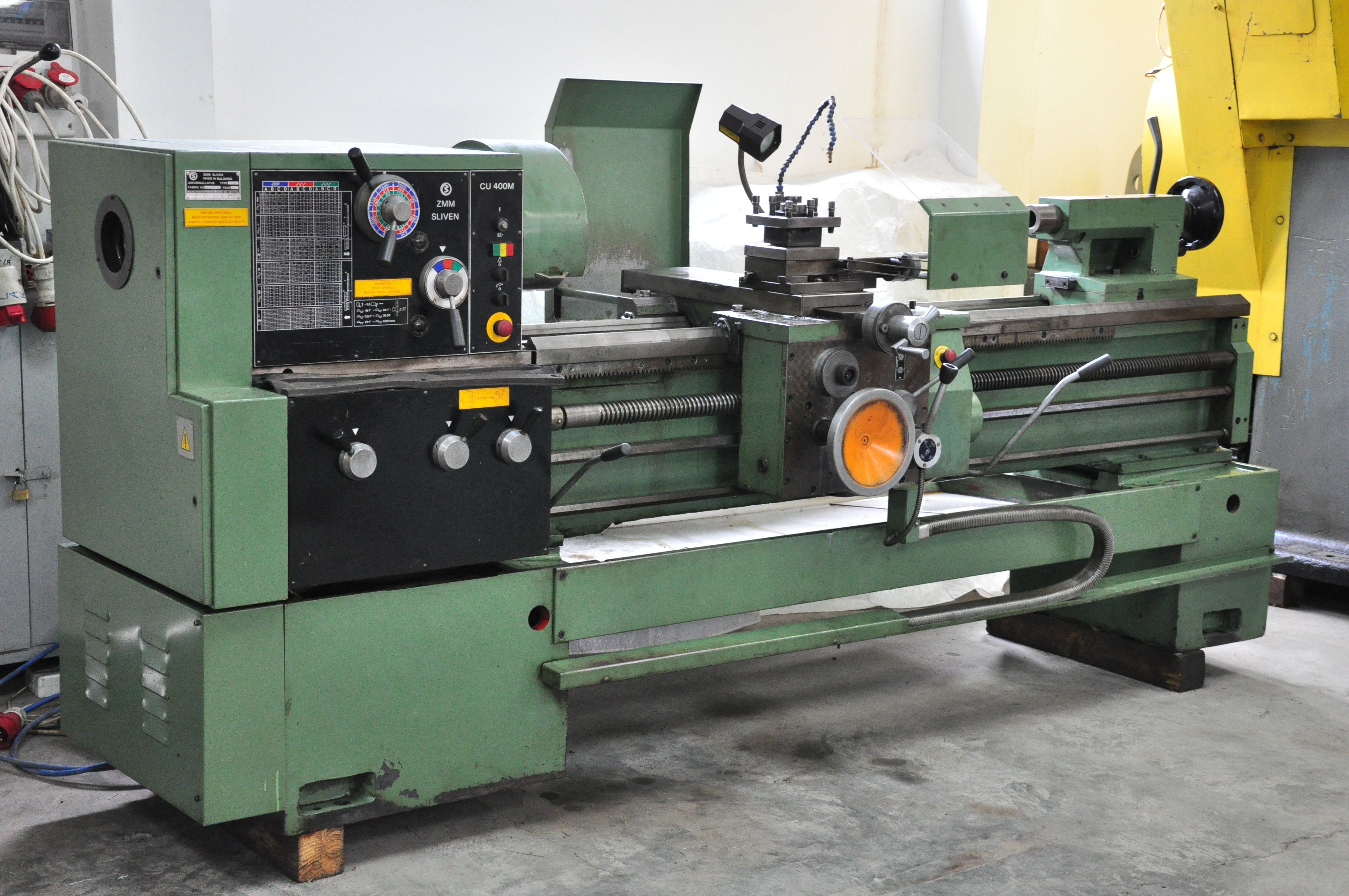

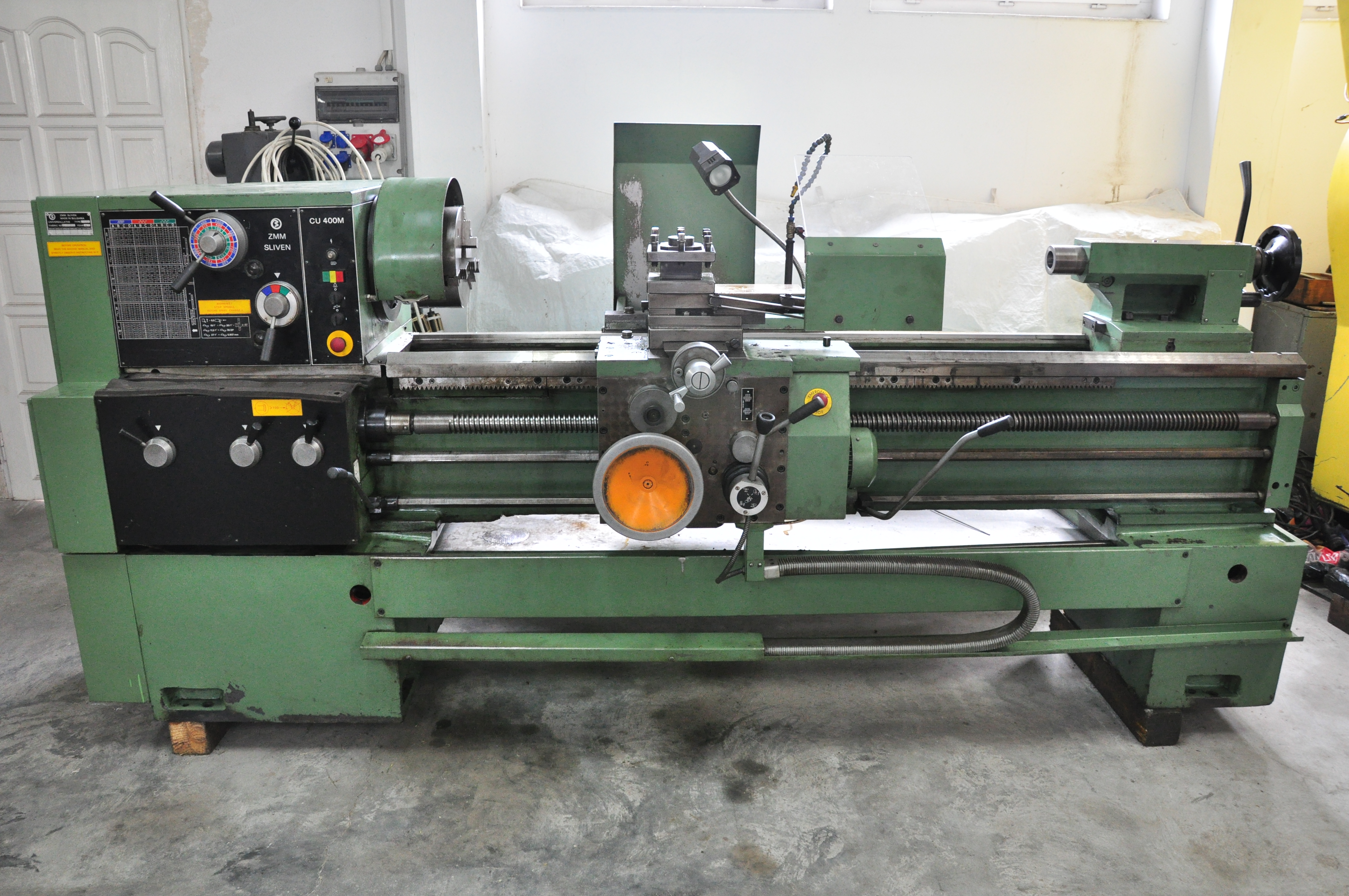

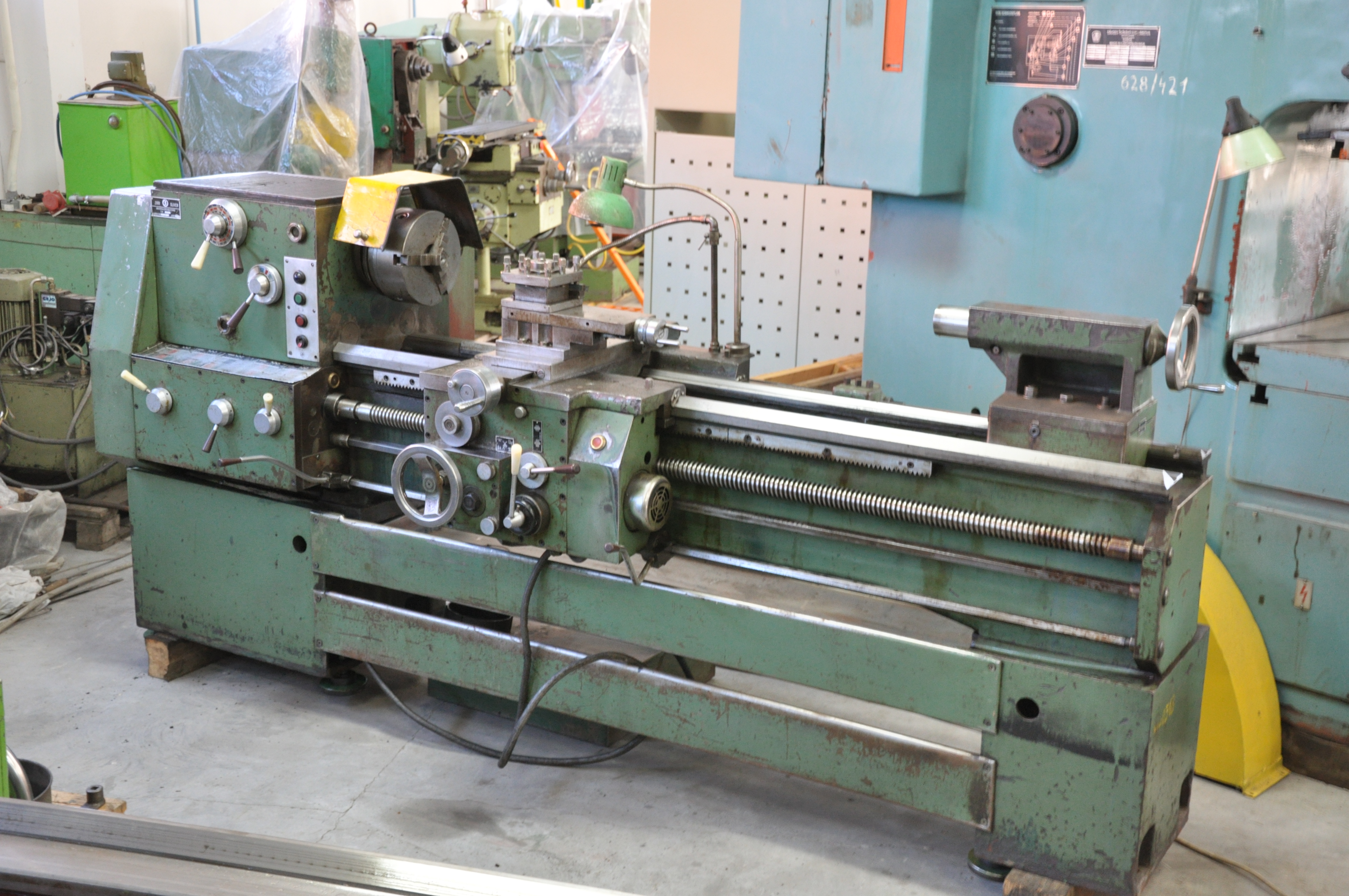

Lathes fotos:
