Eccentric Press this machine, whose main task is to stamping or cutting sheet metal. Electricity drives the motor, which is accelerating the flywheel. Then, at the time of the clutch, force is transmitted from the flywheel to the crankshaft through the slider. Followed by conversion of rotary movement to the reciprocating motion. The body of the eccentric press must be sturdy enough to withstand the resulting force acting in a direction opposite to the direction of cutting (or embossing).
Foto Eccentric Presses and eccentric press components:

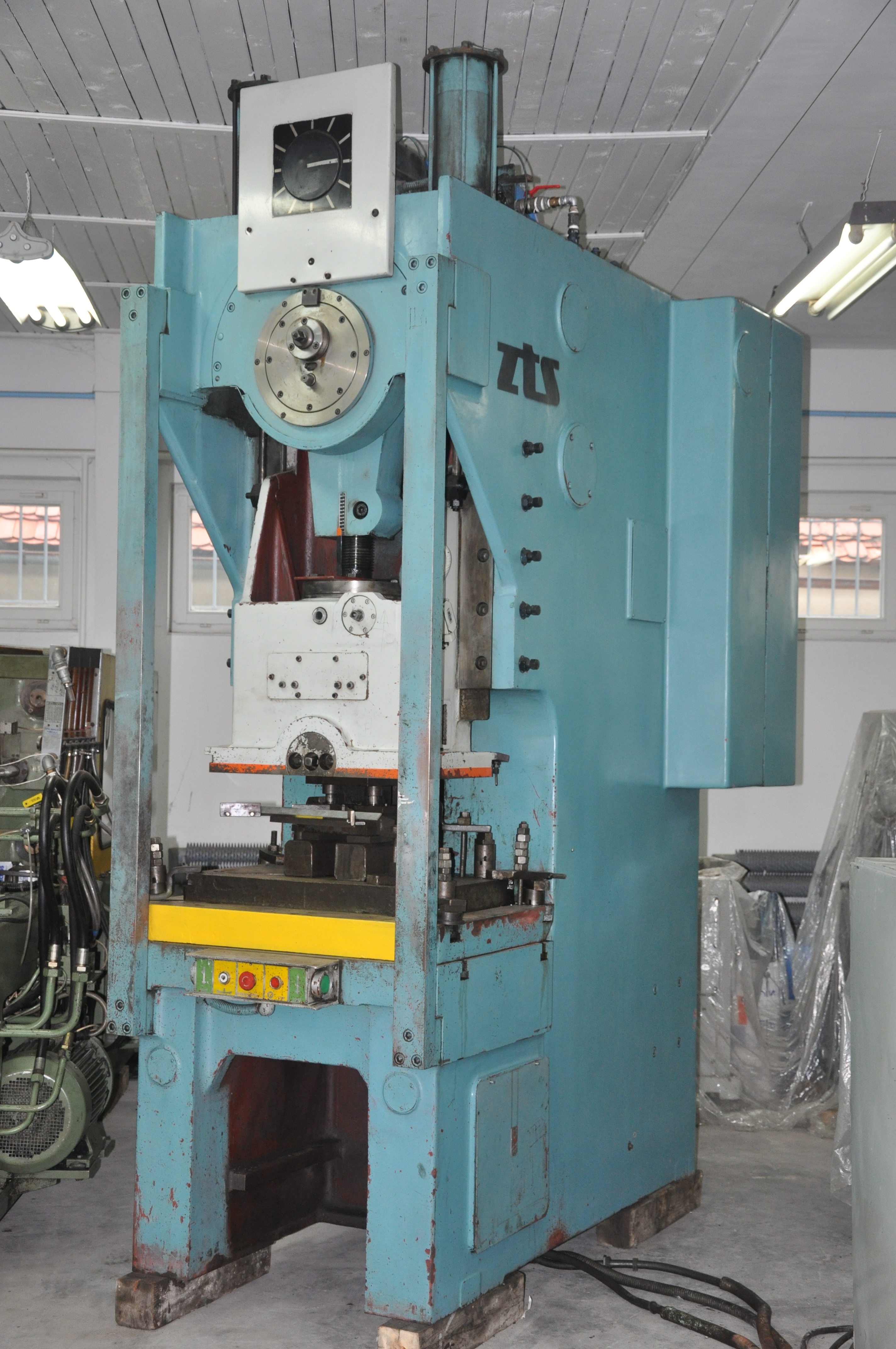

1. Eccentric Press ZTS LEK 160.
Flywheel on the back of the Eccentric Press. The crankshaft passes through the machine from front to back.

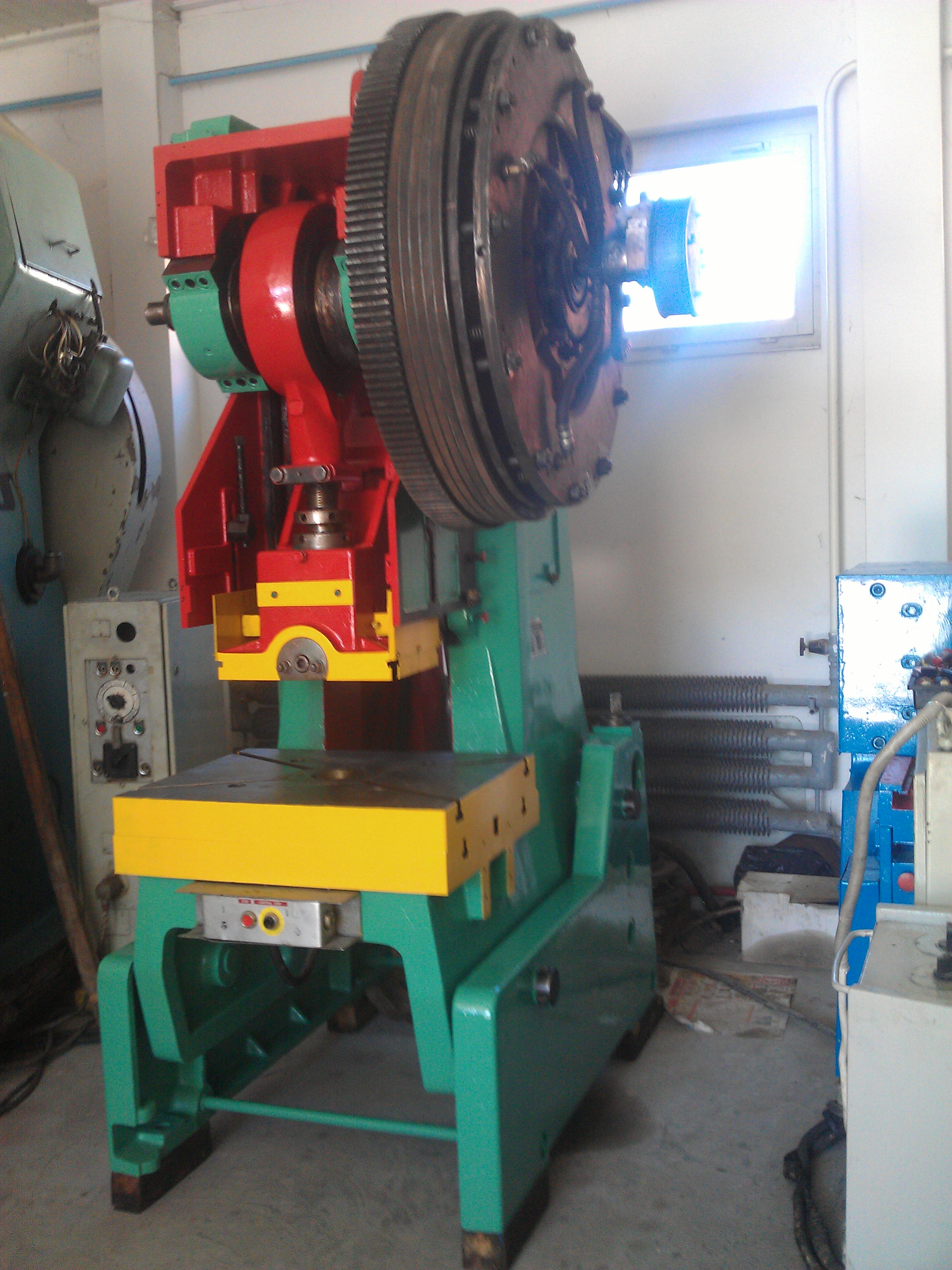

2. Eccentric Press TOMA LEN 25 C.
The flywheel to the side of the eccentric press.

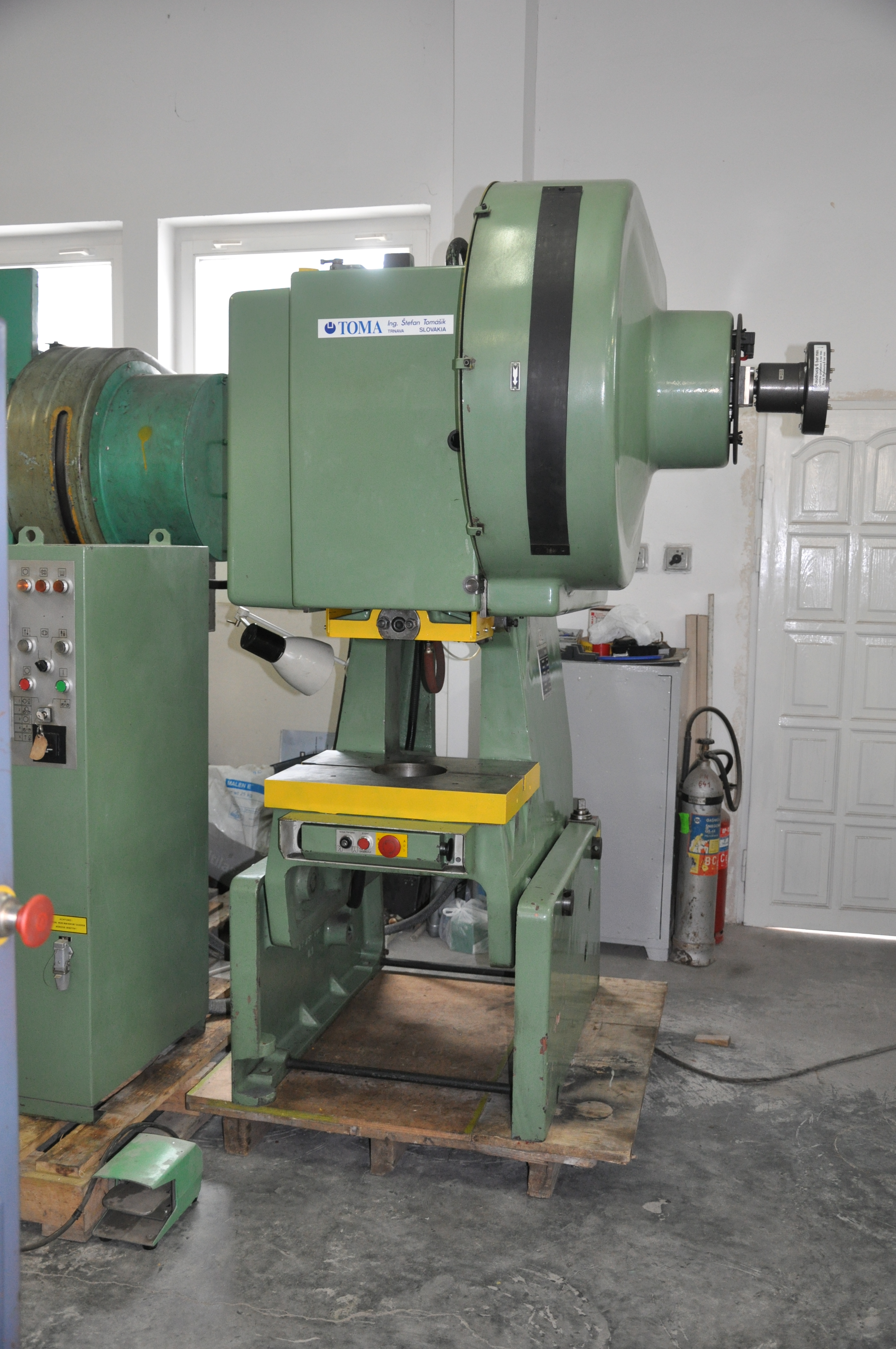

3. Components of eccentic press construction: crankshaft, connecting rod and slider the Eccentric Press.

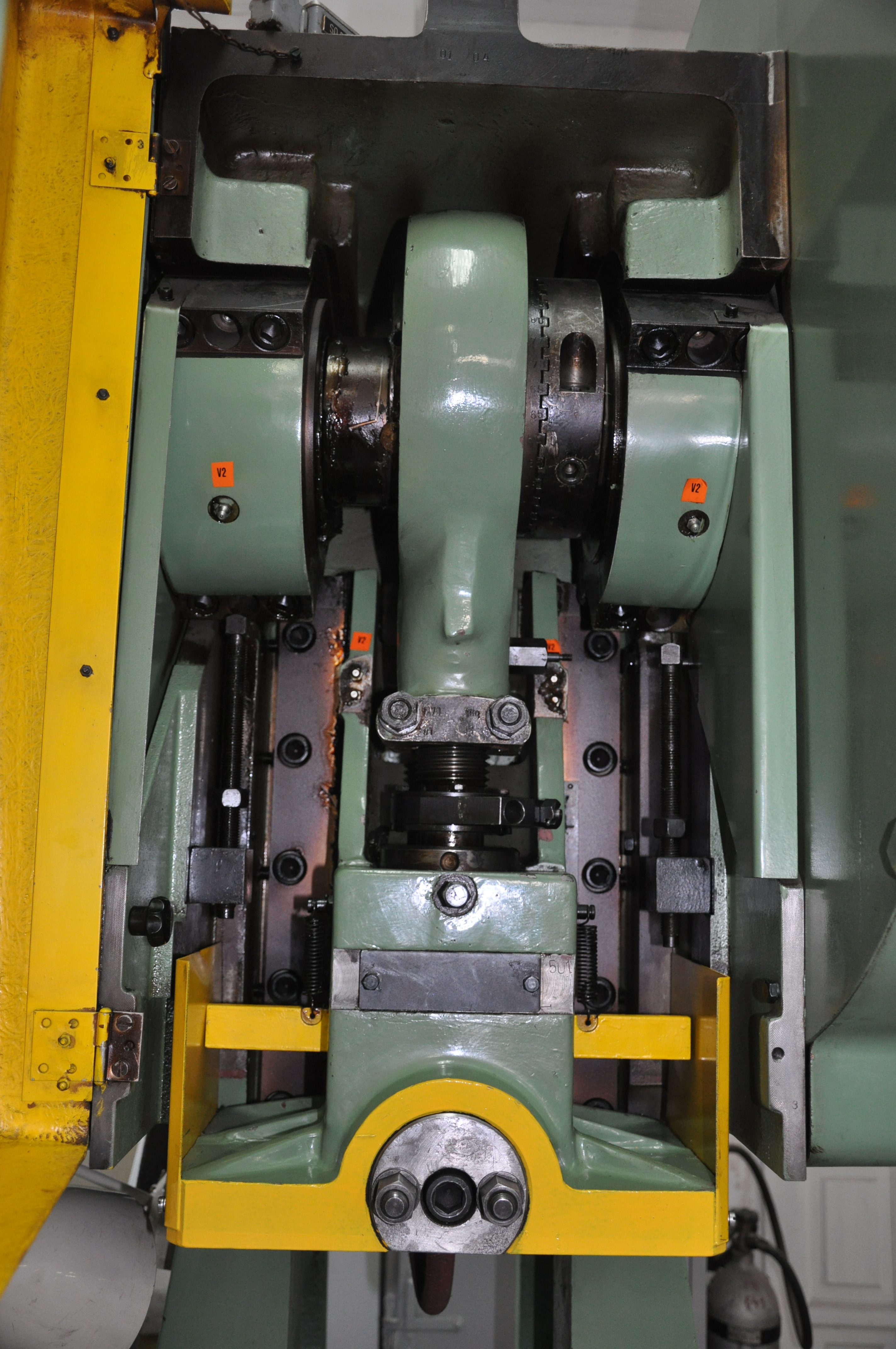

4. Eccentric Press elements (flywheel, pneumatic clutch).
The body of the machine is tilting. In the photo we see the connecting rod, slider, bolster plate. The crankshaft is positioned transversely to the machine – in the axis of the flywheel.
